Home >> Products >> 8MP AF MIPI >> GalaxyCore GC08A8 >> KLT-MAB13-GC08A8 V1.0

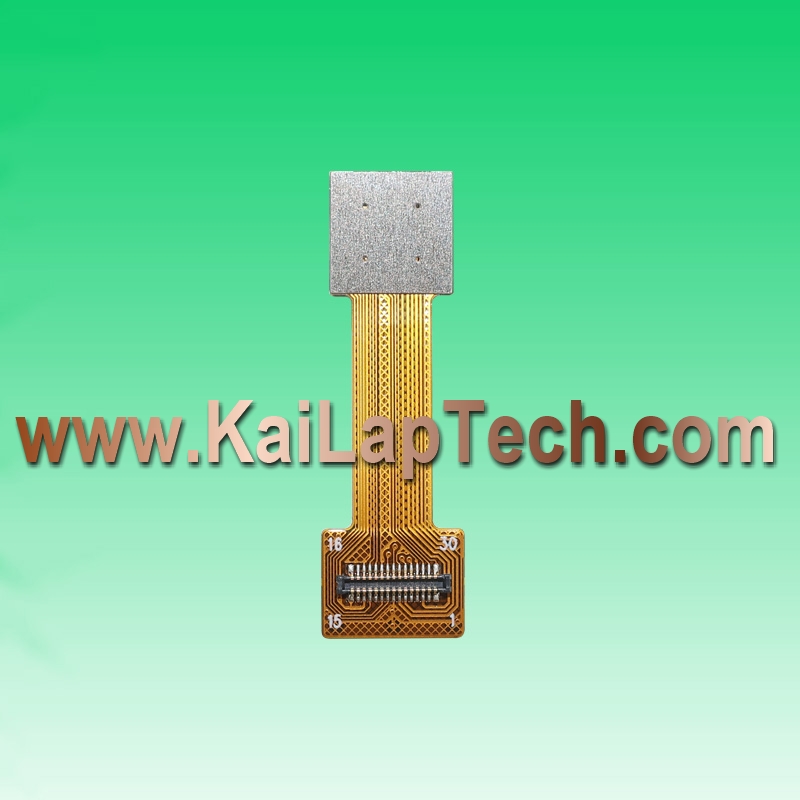

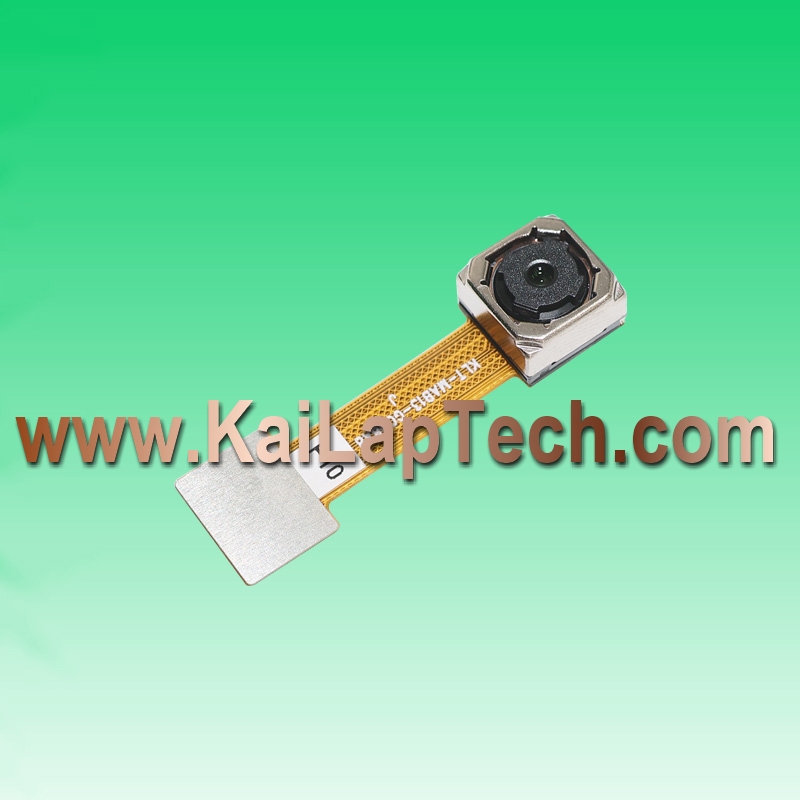

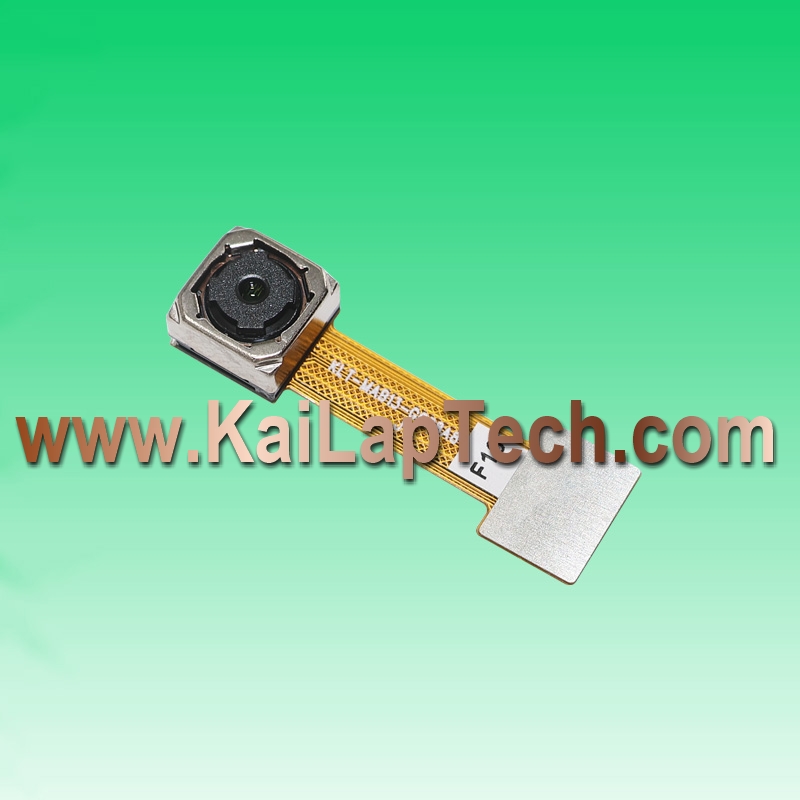

        8MP GalaxyCore GC08A8 MIPI Interface Auto Focus Camera Module
        Model No.   KLT-MAB13-GC08A8 V1.0











 Camera Module No. KLT-MAB13-GC08A8 V1.0
 Resolution 8MP
 Image Sensor GC08A8
 Sensor Type 1/4"
 Pixel Size 1.12 um x 1.12 um
 EFL 3.57 mm
 F.NO 2.00
 Pixel 3264 x 2448
 View Angle 58.5°(DFOV)  49.5°(HFOV)  38.0°(VFOV)
 Lens Dimensions 8.50 x 8.50 x 5.60 mm
 Module Size 31.90 x 9.80
 Module Type Auto Focus
 Interface MIPI
 Auto Focus VCM Driver IC Embedded
 Lens Type 650nm IR Cut
 Operating Temperature -20°C to +70°C
 Mating Connector 24-5804-030-000-829
