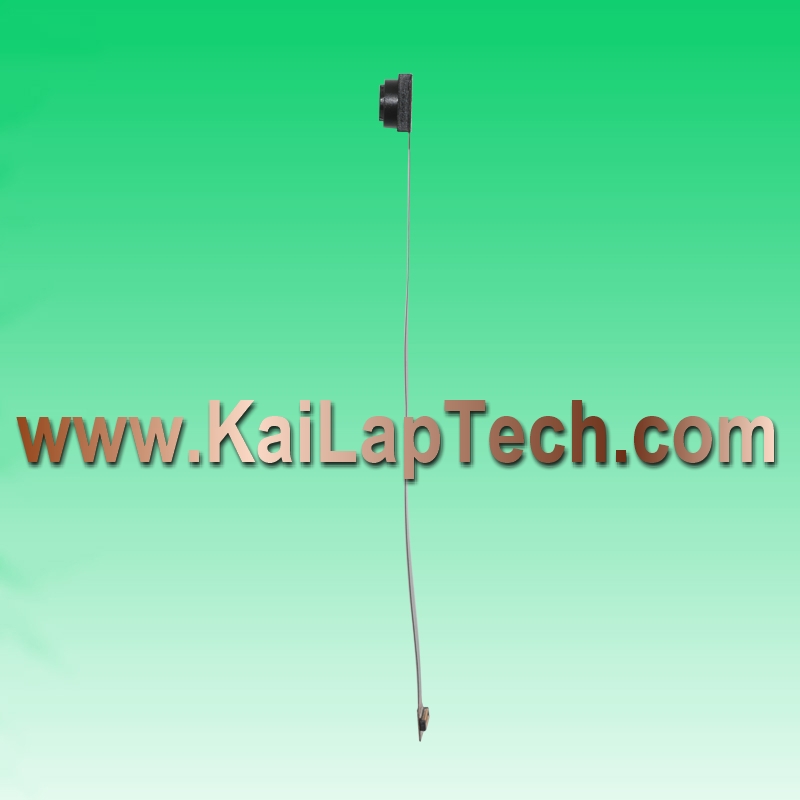

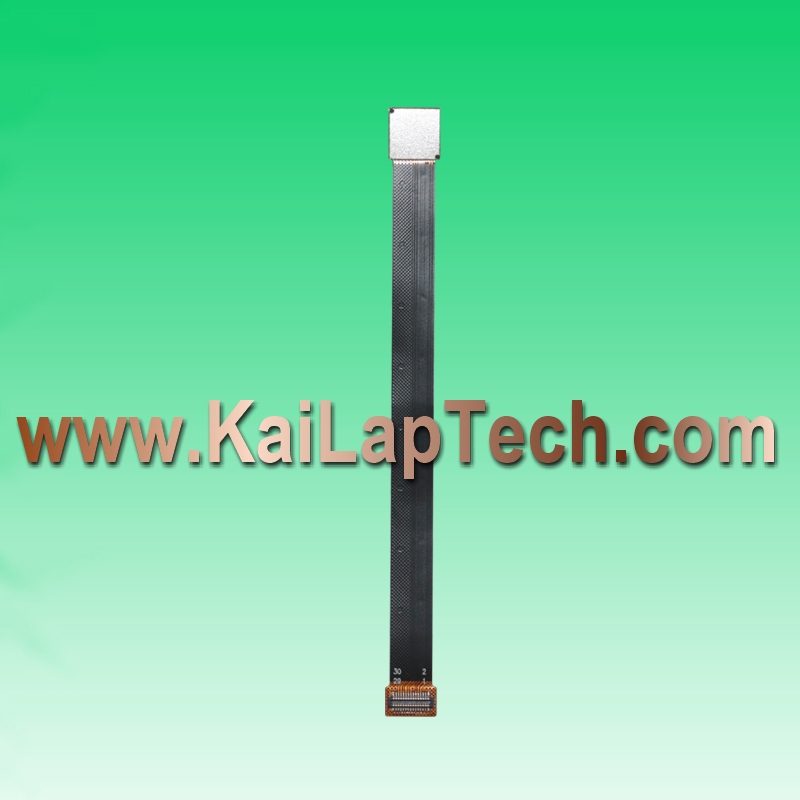

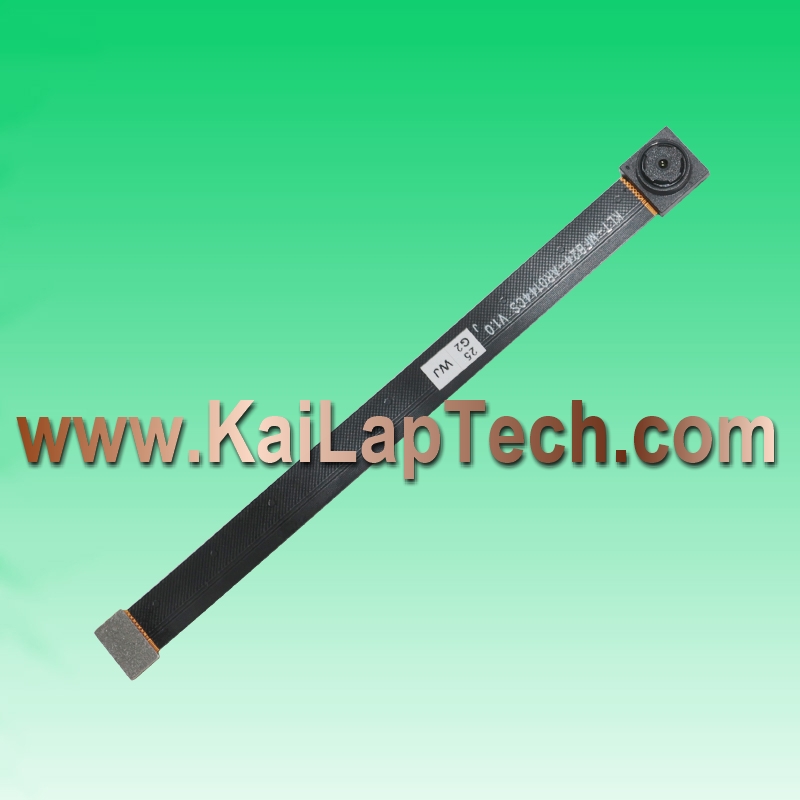

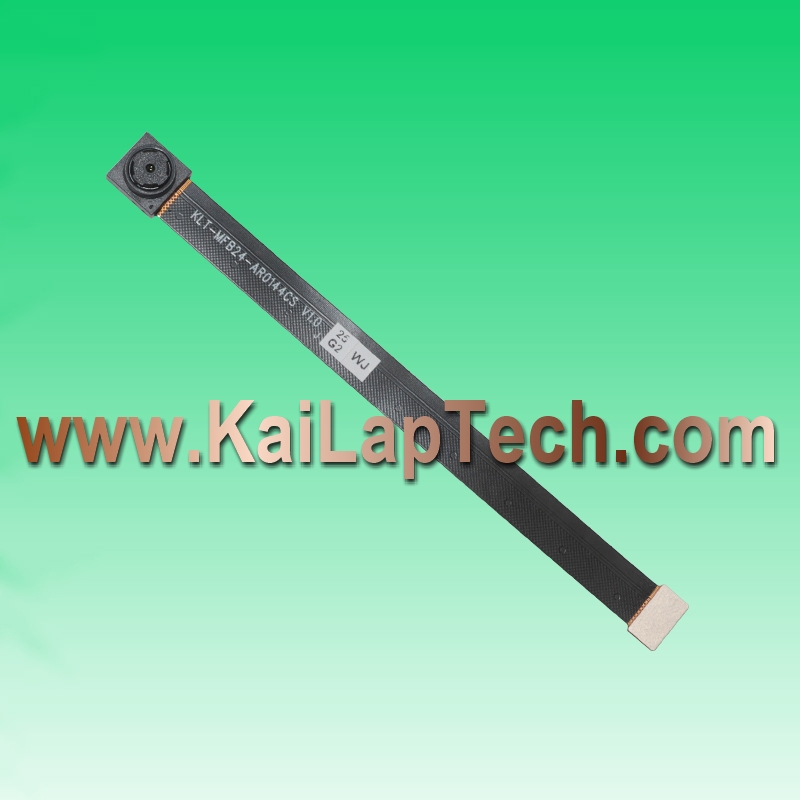

        1MP OnSemi AR0144CS Global Shutter MIPI Interface Fixed Focus Camera Module
        Model No.   KLT-MFB24-AR0144CS V1.0










 Camera Module No. KLT-MFB24-AR0144CS V1.0
 Resolution 1MP
 Image Sensor AR0144CS Global Shutter
 Sensor Type 1/4"
 Pixel Size 3.0 um x 3.0 um
 EFL 3.29 mm
 F.NO 2.80
 Pixel 1280 x 800
 View Angle 68.7°(DFOV)  58.1°(HFOV)  45.0°(VFOV)
 Lens Dimensions 8.50 x 8.50 x 4.90 mm
 Module Size 100.00 x 8.50 mm
 Module Type Fixed Focus
 Interface MIPI
 Auto Focus VCM Driver IC None
 Lens Type 650nm IR Cut
 Operating Temperature -40°C to +85°C
 Mating Connector BBR43-30KB533
