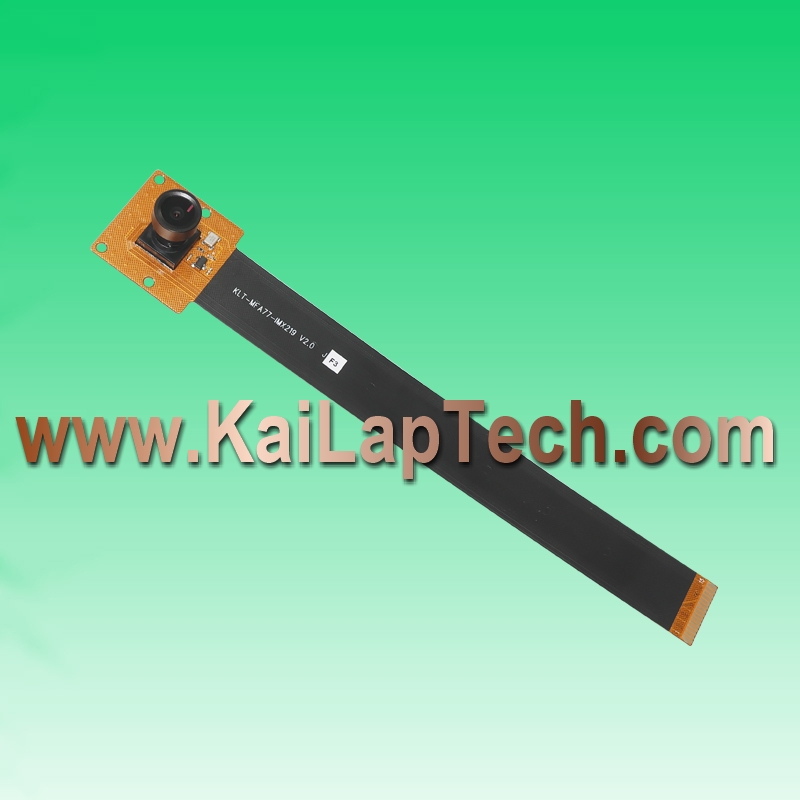

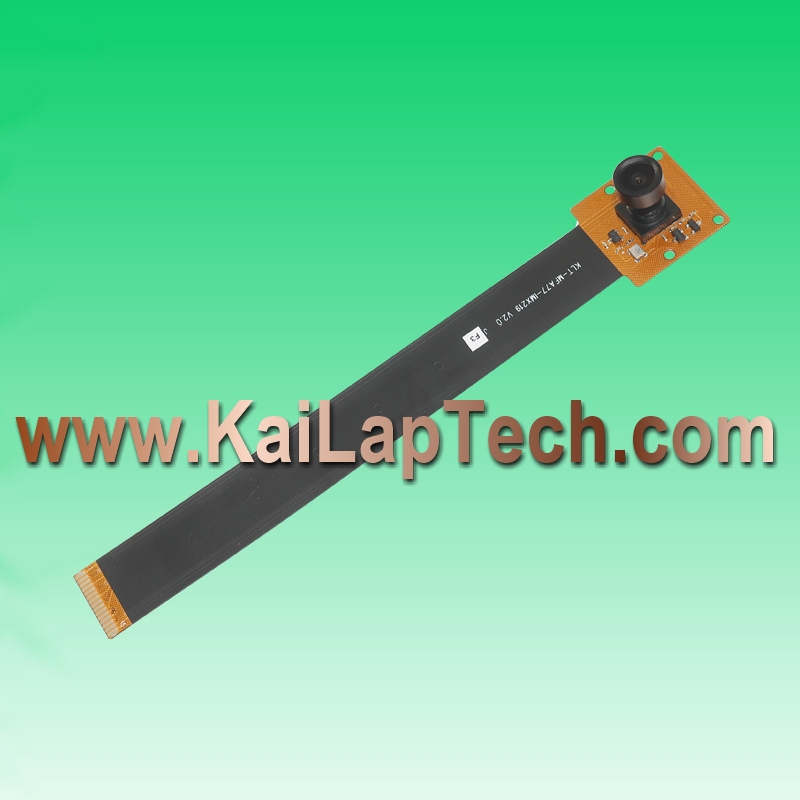

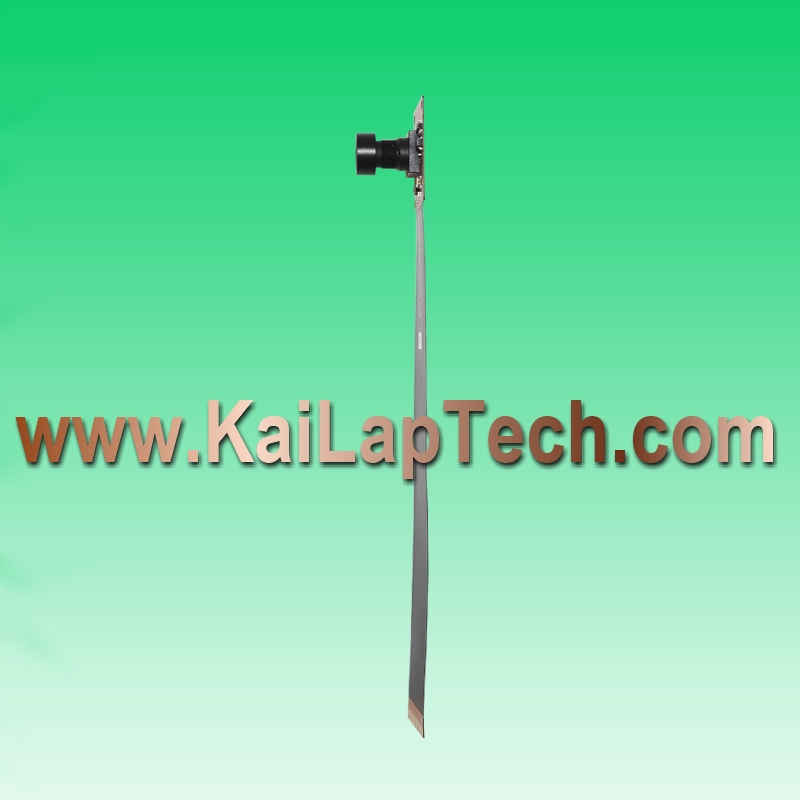

8MP Sony IMX219 MIPI Interface Nvidia Jetson Nano Xavier NX Fixed Focus Camera Module
|
| Model No. KLT-MFA77-IMX219 V2.0 |
| Camera Module No. |
KLT-MFA77-IMX219 V2.0 |
| Resolution |
8MP |
| Image Sensor |
IMX219 |
| Sensor Type |
1/4" |
| Pixel Size |
1.12 um x 1.12 um |
| EFL |
2.30 mm |
| F.NO |
2.60 |
| Pixel |
3264 x 2448 |
| View Angle |
136.0°(DFOV) 105.0°(HFOV) 60.0°(VFOV) |
| Lens Dimensions |
10.00 x 10.00 x 15.32 mm |
| Module Size |
150.00 x 25.00 mm |
| Module Type |
Fixed Focus |
| Interface |
MIPI |
| Auto Focus VCM Driver IC |
None |
| Lens Type |
650nm IR Cut |
| Operating Temperature |
-20°C to +60°C |
| Mating Connector |
TE, 1-1734248-5 |
|
