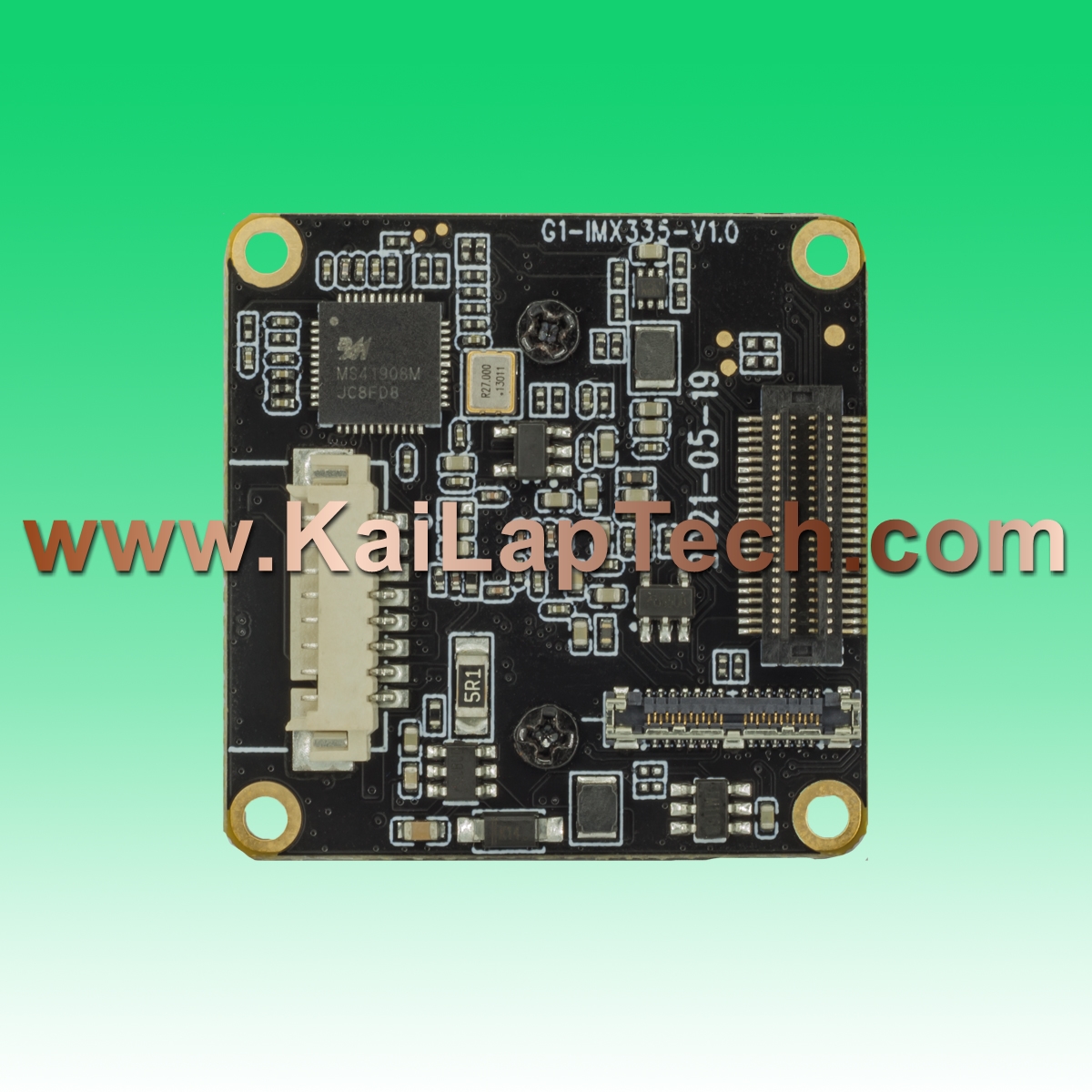

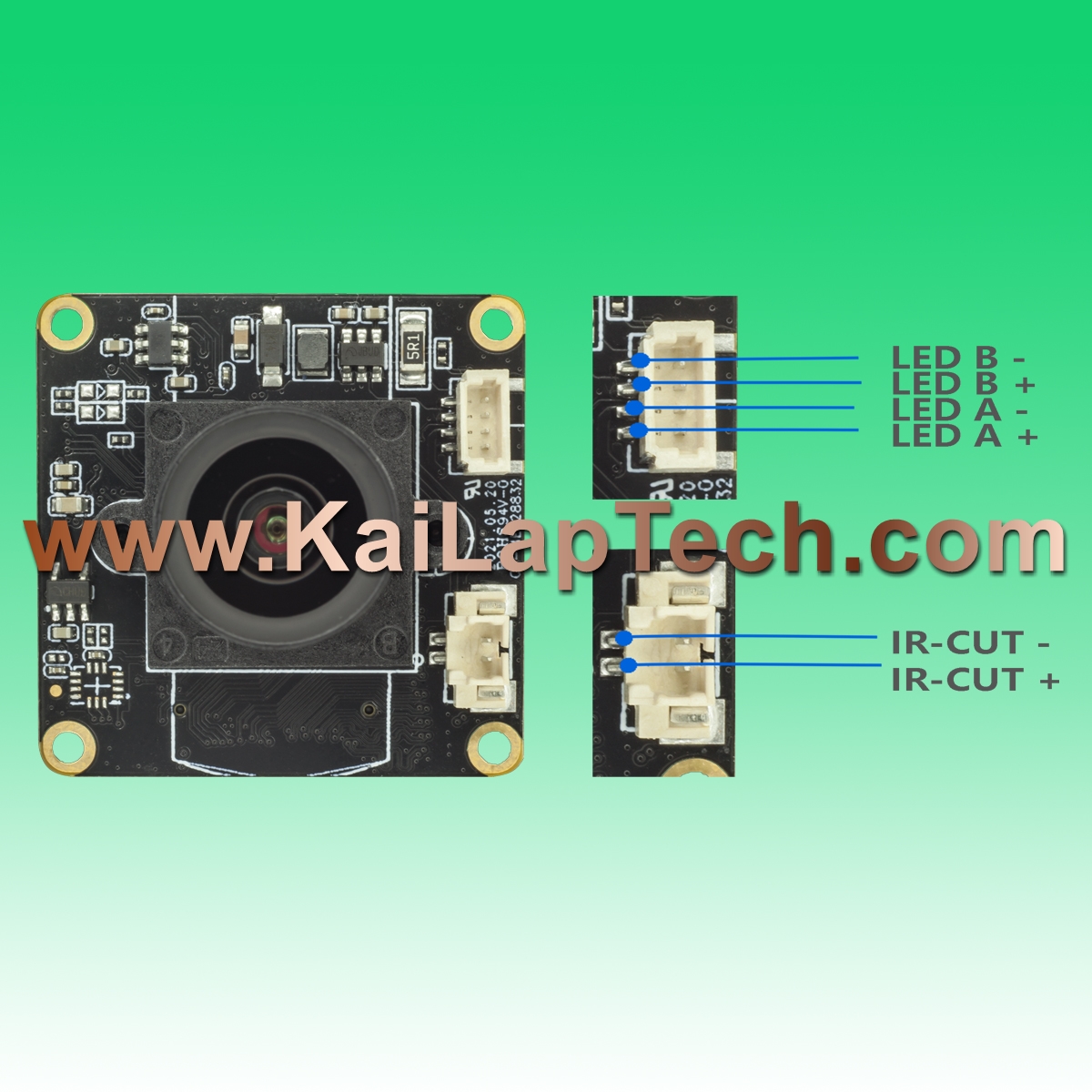

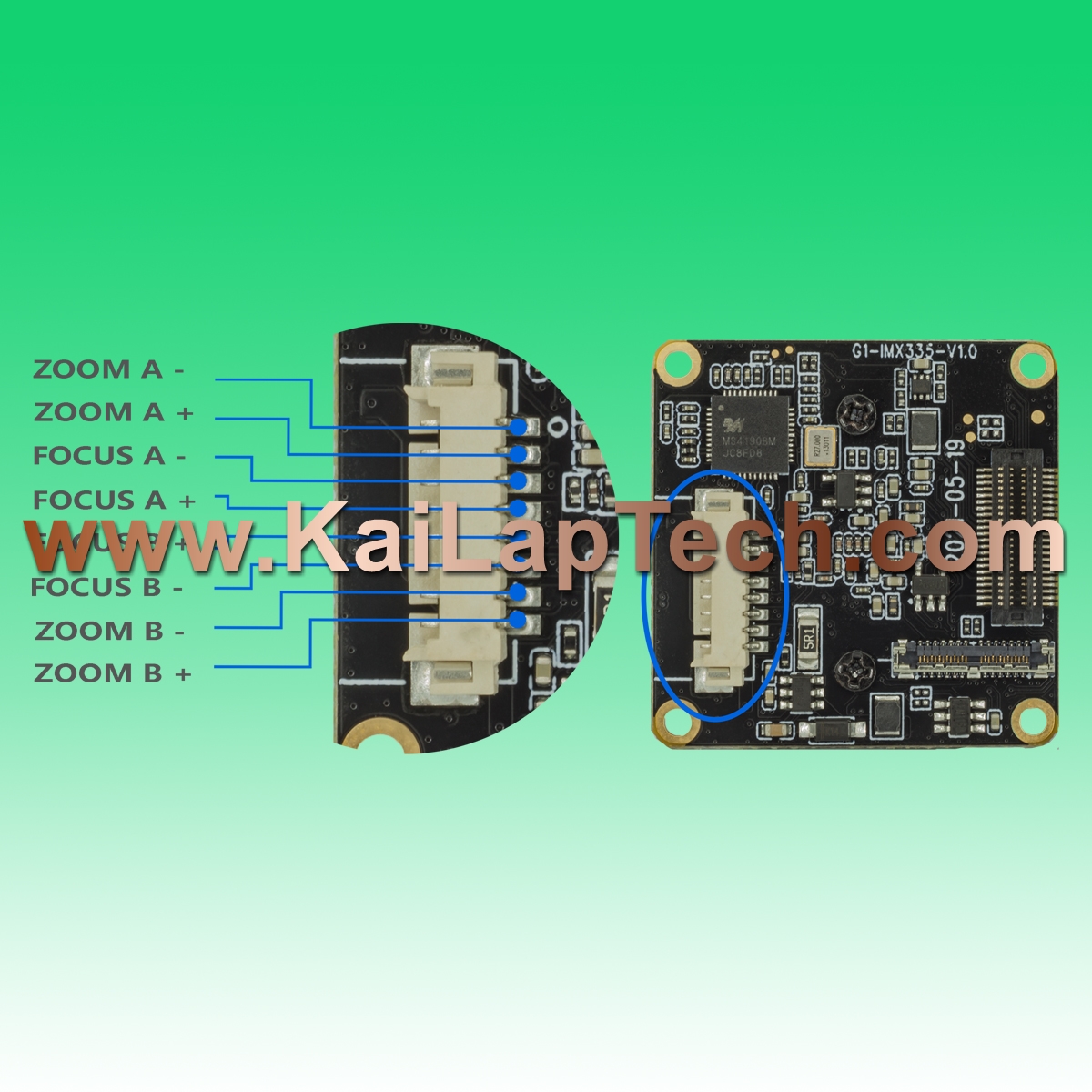

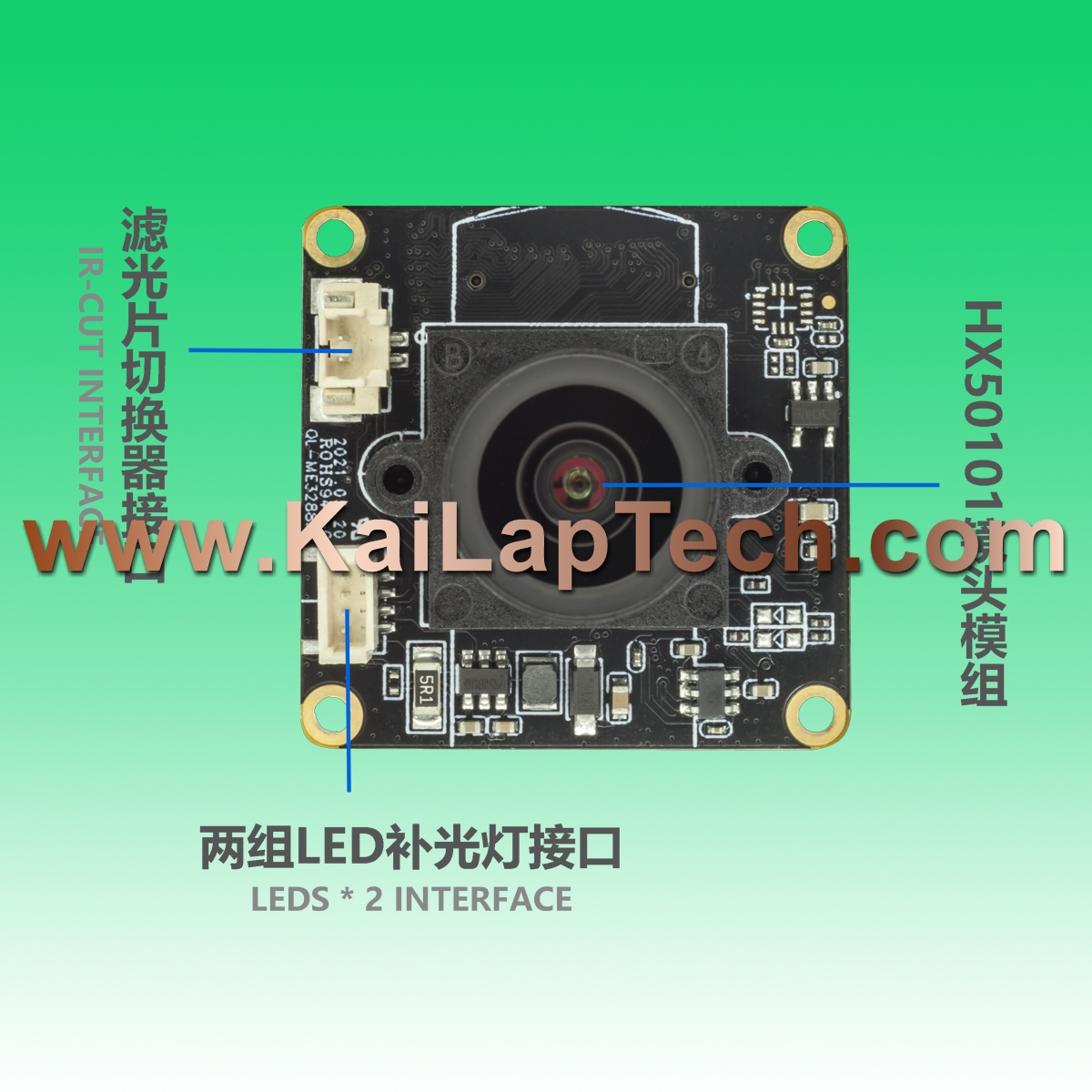

        5.14MP Sony IMX335 Fixed Focus Camera Module
        Model No.  KLT-CMFL50101-IMX335 V1.0












The KLT-CMFL50101-IMX335 V1.0 camera module uses the Sony IMX335 high-quality CMOS image sensor, which has a diagonal of 6.52mm (1/2.8 type) CMOS image sensor, a pixel of 2.0um, a color square pixel display, and an effective pixel of 5.14 megapixels. When used with the master board, it can support shooting 5MP pixel high-definition photos and up to 2.7K@30FPS video. The board frame size is 32x32mm, and the size from the top of the module lens to the PCB board is 32x32x27.62mm.



This camera module is not sold separately. The camera module is solely compatible our company’s Ai Master board as they must be sold in bundle, optionally with WiFi expansion board or Network Ethernet board.



 Specifications
 Model No. KLT-CMFL50101-IMX335 V1.0
 Image Sensor IMX335
 Image Sensor Type CMOS
 Effective Pixels 5.14 Megapixels
 Sensor Size 1/2.8"
 Pixel Size 2.0 um x 2.0 um
 Video Frame Rate 4K@30FPS/60FPS (Differential)
2.7K@30FPS
1080P@30FPS/60FPS
720P@60FPS/120FPS
 Photo Resolution
 (with Master Board)
20MP (5200x3900) (Differential)
13MP (4160x3120) (Differential)
12MP (4000x3000) (Differential)
10MP (3648x2736) (Differential)
8MP (3264x2448) (Differential)
5MP (2592x1944) Default
3MP (2048x1536)
2MP (1920x1080)
 Operating Temperature -10°C to +60°C
 Storage Temperature -20°C to +80°C
 Humidity 20% to 80%
 PCB Dimensions 32 x 32 mm
 Module Size 32 x 32 x 27.62 mm
 PCB Screw Hole Spacing 28 x 28 mm
 PCB Screw Hole Diameter 2 mm
