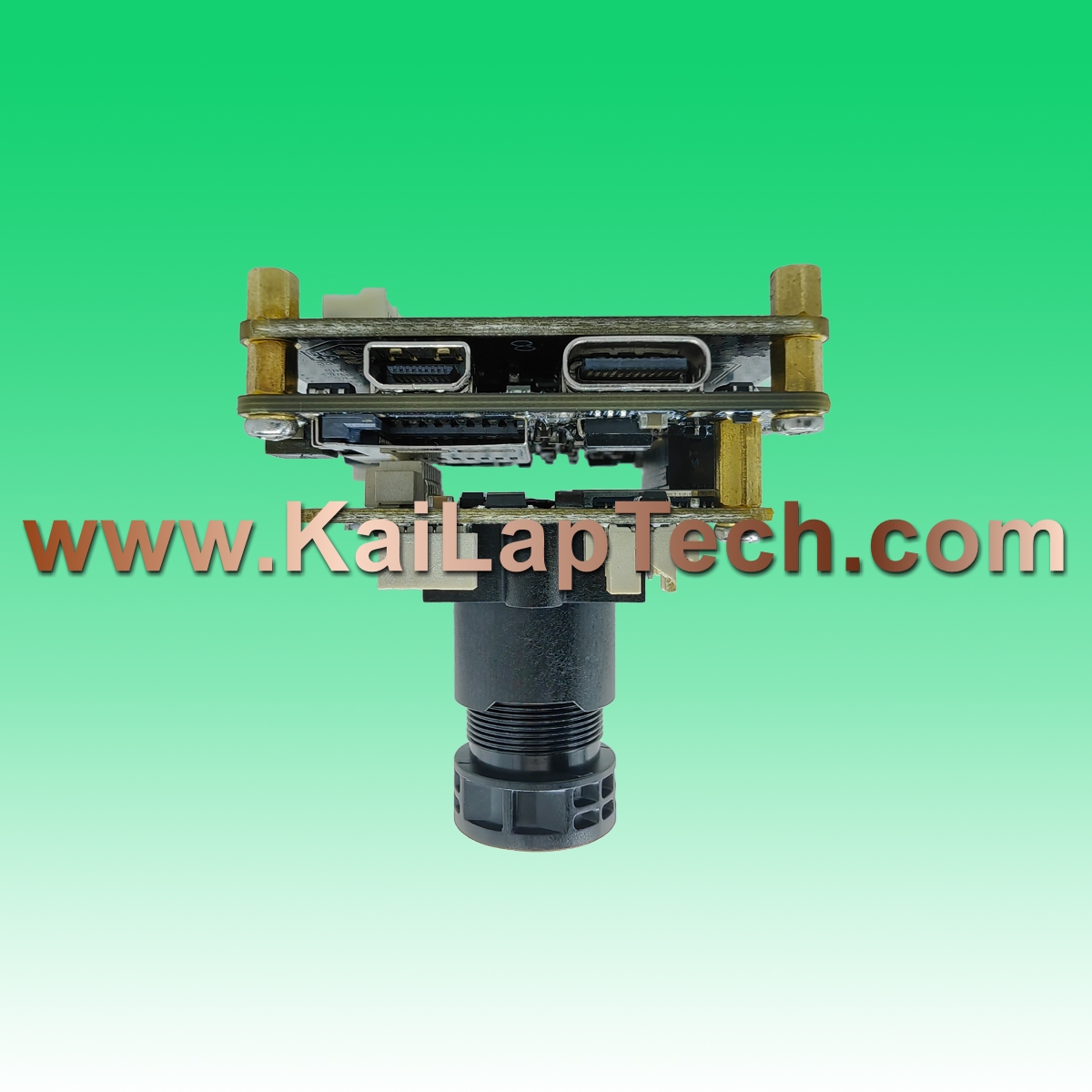

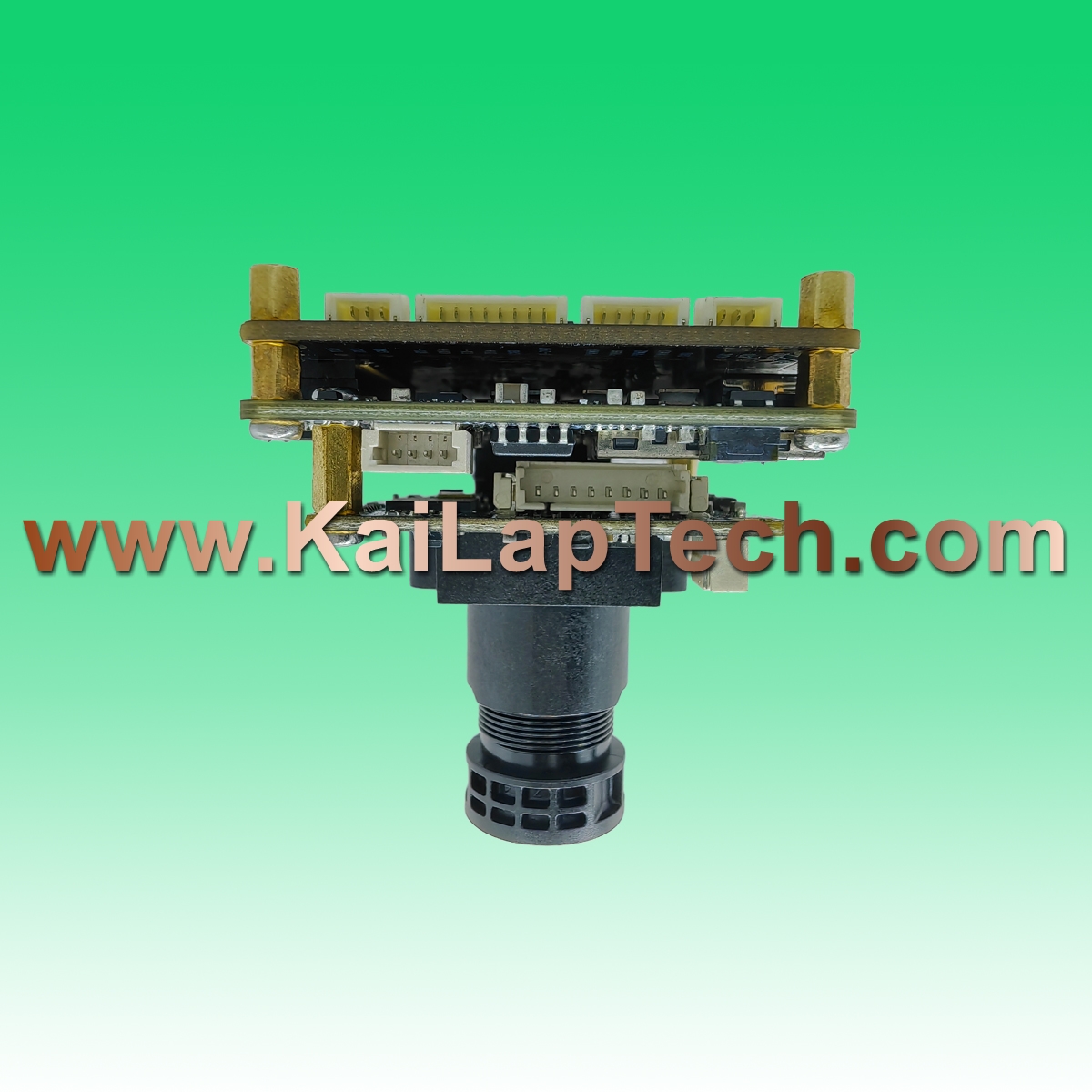

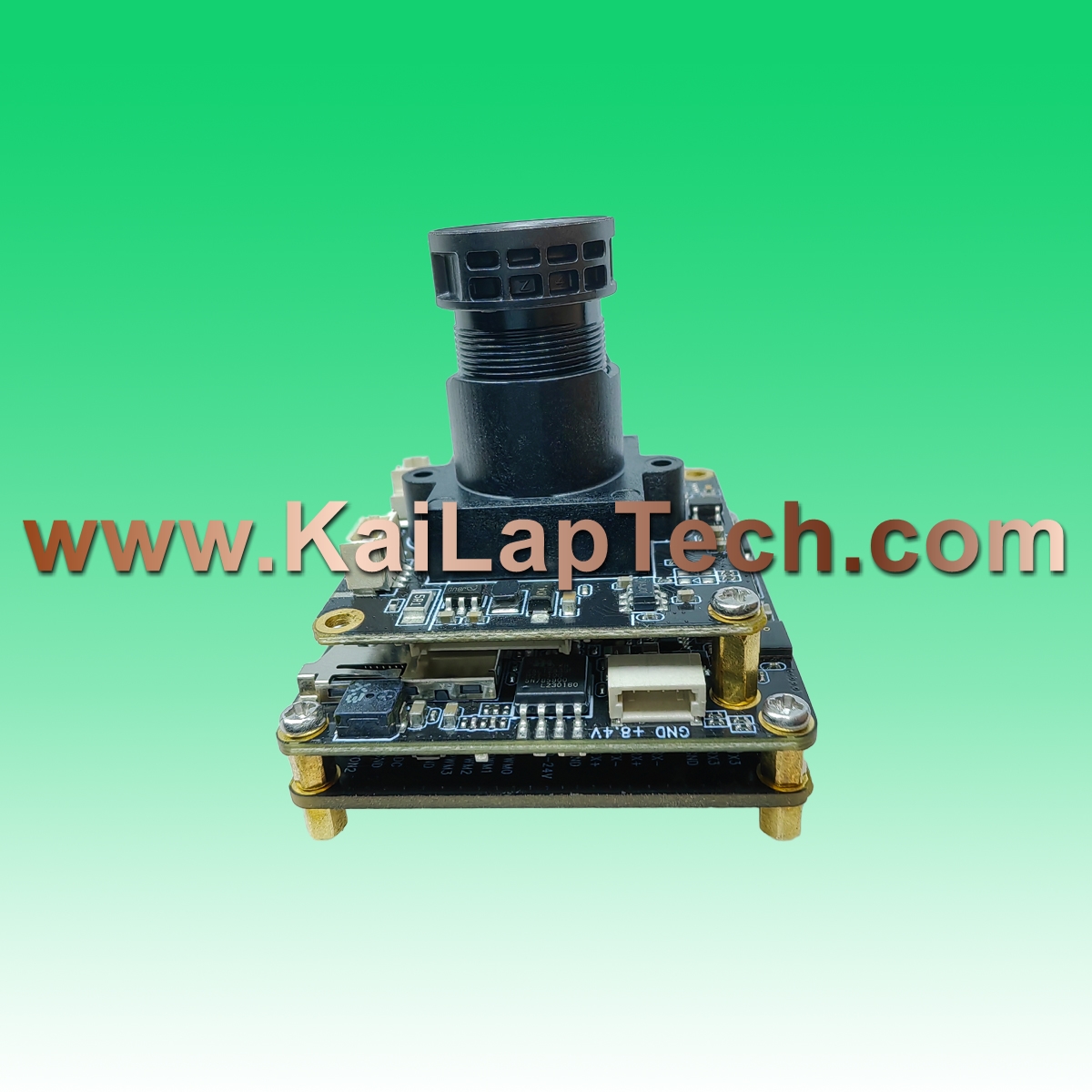

        Ai Master Board + Network Board + 5.14MP Sony IMX335 Fixed Focus Camera Module Development Kit
        Model No.  KLT-G1M9NK3+KLT-CMFL60101-IMX335 V1.0

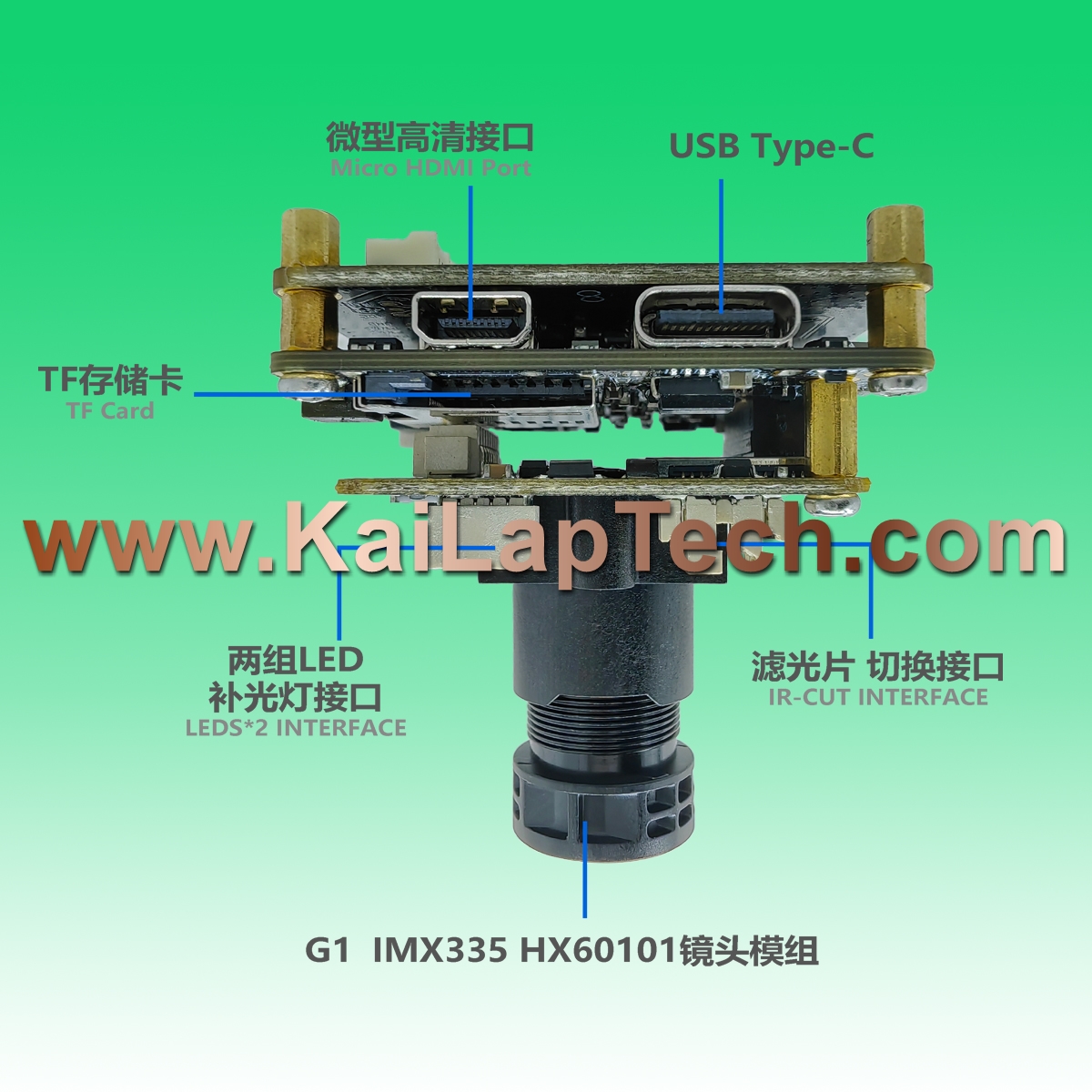

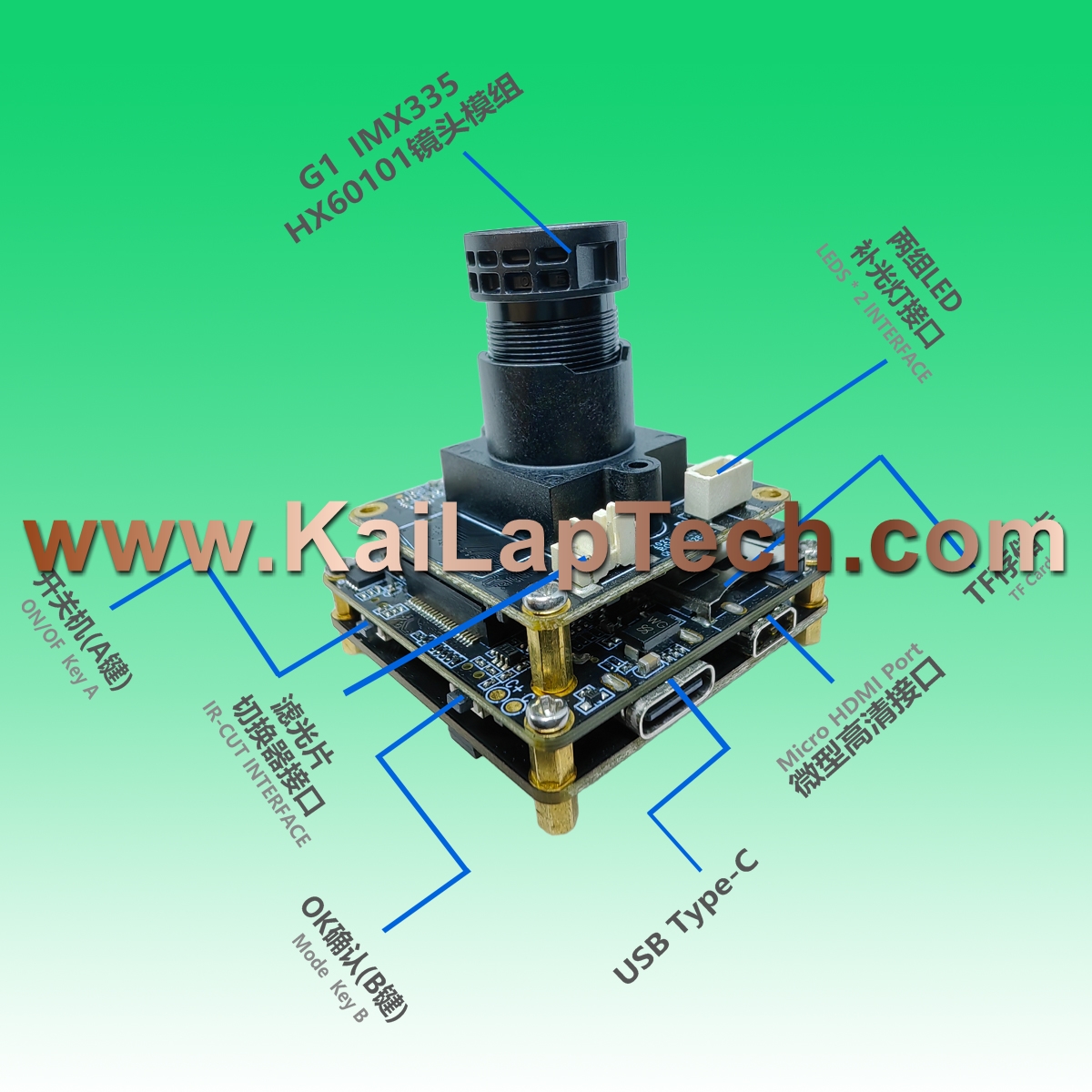

Equipped with iCatch V39, built-in 2GB DDR3, supports up to 4K@60FPS (differential), 4K@30FPS, 1080P@120FPS H.264 encoded video. Onboard support Type-C, HDMI, TF memory card, recording, 2 control buttons, buzzer, battery power supply, etc.



This master board extension also supports WiFi, LCD display, CVBS, lens module, UART, I2C, SPI, PWM, MIC and other expansion interfaces. The board size is 38x38mm. Widely used in drones, mini DV, wearable devices, sports cameras, face recognition, USB cameras and other camera products.



 Hardware Specifications
 Model No. KLT-G1M9 V6.2
 Main Control Chipset (DSP) iCatch V39
 Image Sensor Interface MIPI
 Battery Voltage 7.4V - 7.7V
High Voltage Lithium Battery
 Storage Type External TF Card, Supports 8GB - 512GB
Class 10 and Above, U3 is Recommended
 Type-C Port Type-C USB 5V
Connection to Computer USB Mode
Connection to PCCAM (Camera) Mode
 LED Indicator Type Three Color Light (Red, Green, Blue)
 2 Control Button Type Power Button (A), OK Button (B)
 Power Supply Supports 3 Power Supply Methods At The Same Time
(1) 5V USB to Type-C Port Power Supply
(2) 9V-24V WiFi Board or Network Port board Power Supply
(3) 6.8V-8.4V Battery Power Supply
(The 3-Axis Gimbal Version Does Not Support 5V USB)
 Operating Temperature -10°C to +60°C Without Housing
 Storage Temperature -20°C to +80°C
 Humidity 20% to 80%
 PCB Dimensions 38 x 38 mm
 PCB Screw Hole Spacing External (34mm x4), Internal (28mm x2)
 PCB Screw Hole Diameter 2 mm
 Optional Camera Configuration (1) KLT-G1M9 V6.2 + Camera
(2) KLT-G1M9 V6.2 + Camera + KLT-G1WF V6.3 WiFi Board
(3) KLT-G1M9 V6.2 + Camera + KLT-G1NK V6.3 Ethernet Board
 Supportive Image Sensors 13MP:  IMX258
12MP:  IMX377  OS12D40  IMX577  IMX386  IMX378
8MP:  IM317
5MP:  IMX335
2MP:  IMX290  IMX385
 Optional Extension Ports WiFi, Ethernet Network Port, Display, Audio IC,
Lens Module, UART, I2C, SPI, PWM, MIC, etc.

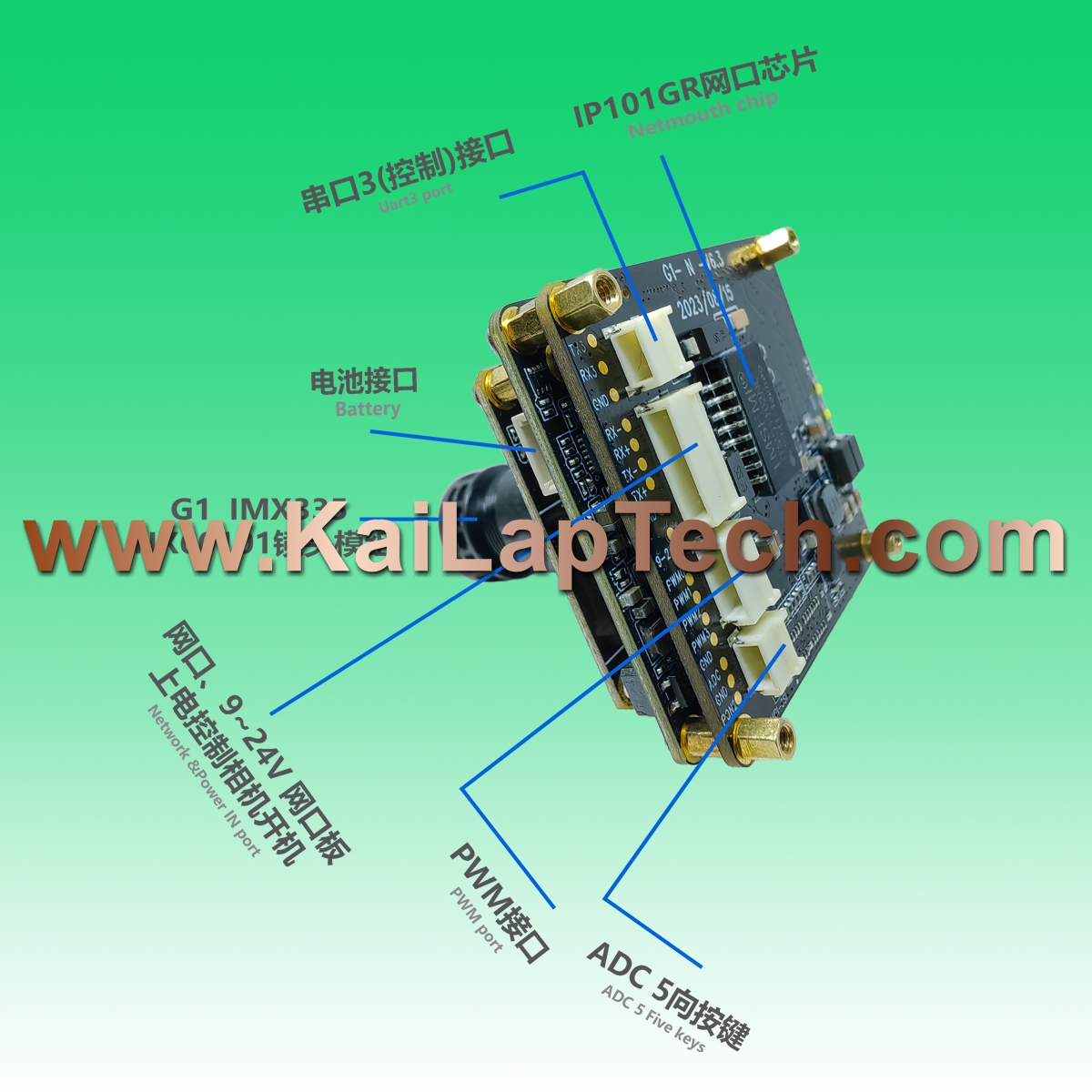

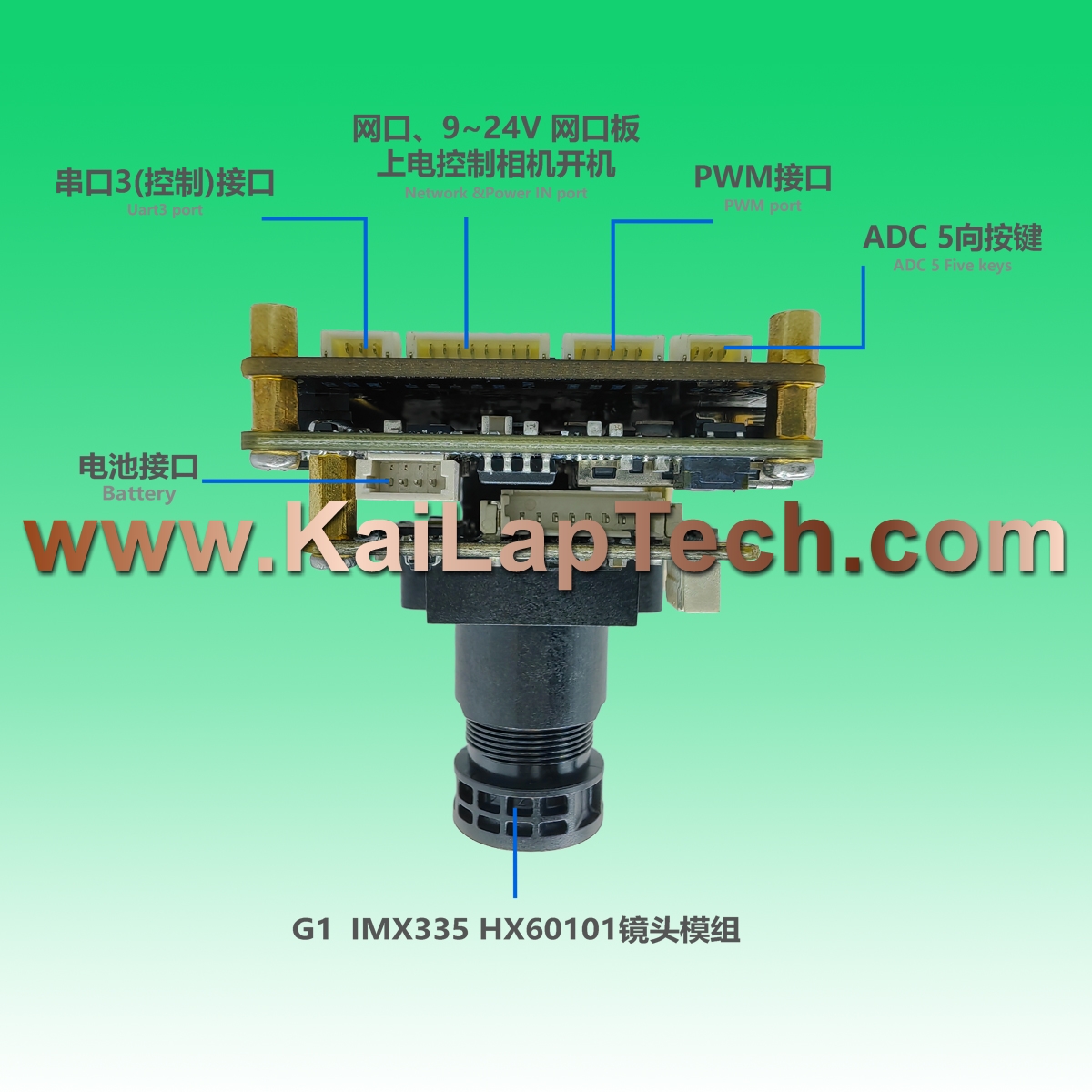

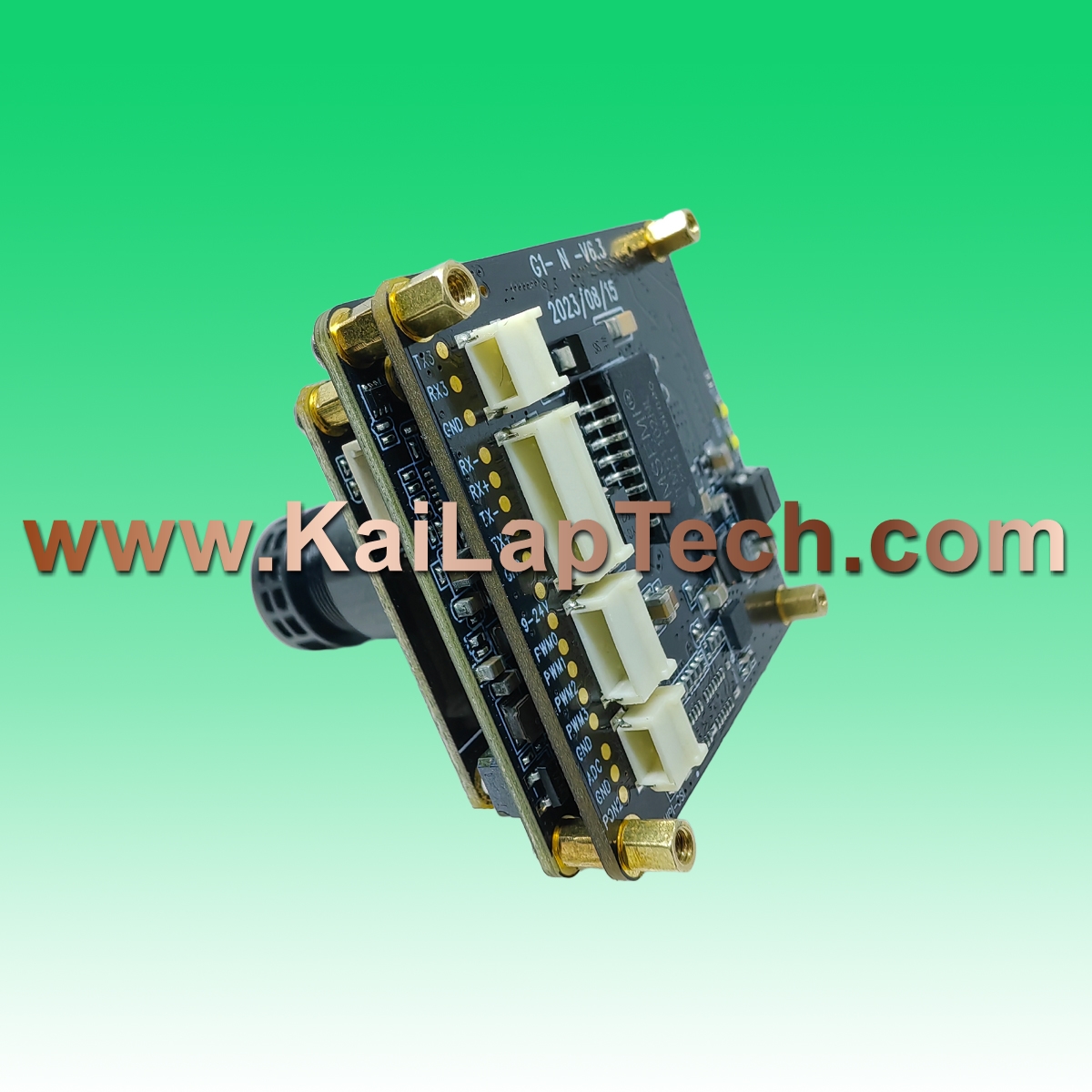

This Ethernet network expansion board is equipped with IP101GR fast Ethernet transceiver, supporting extended network port, PWM, serial port, automatic power-on power supply interface, and MIPI interface.





The board PCB size is 38x38mm, and this Ethernet board must be used with the our company’s designated master board. This board can not work independently.



 Hardware Specifications
 Model No. KLT-G1NK V6.3
 Ethernet Transceiver IP101GR
 Power Supply Supports 3 Power Supply Methods At The Same Time
(1) 5V USB to Type-C Port Power Supply
(2) 9V-24V WiFi Board Power Supply
(3) 6.8V-8.4V Battery Power Supply
(The 3-Axis Gimbal Version Does Not Support 5V USB)
 Transmission Rate 100 Mbps
 Serial Port / UART RX3, TX3, GND
 LED Indicator White Light Indicator at Network Working Status
 PWM PWM0PWM1/UART3_GND
 ADC Button Up, Down, Left, Right, OK  5-Way ADC Buttons
Power Button
 Operating Temperature -10°C to +60°C Without Housing
 Storage Temperature -20°C to +80°C
 Humidity 20% to 80%
 PCB Dimensions 38 x 38 mm
 PCB Screw Hole Spacing 34 mm
 PCB Screw Hole Diameter 2 mm
 Extendable Functions PWM0PWM1/UART3_GND





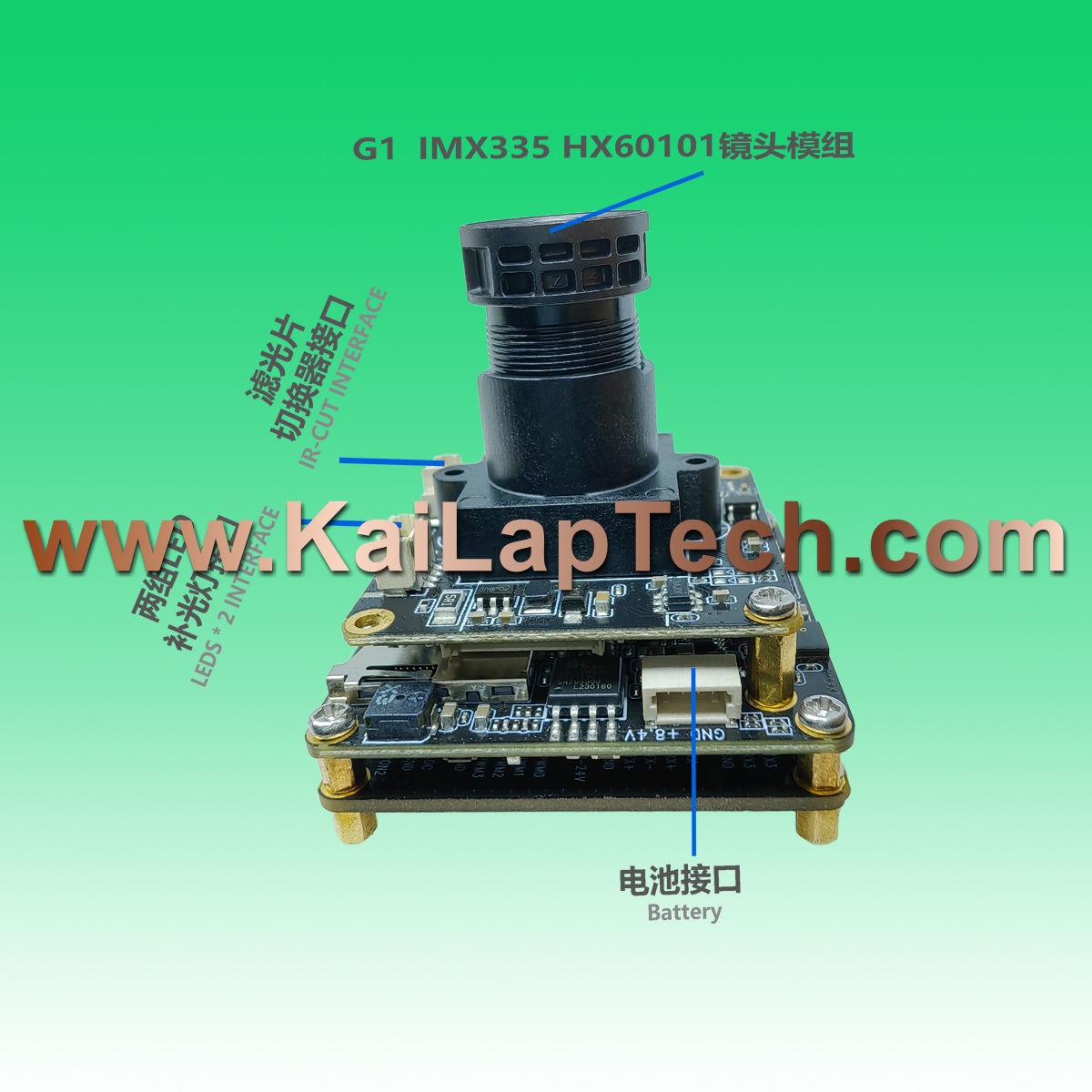

The KLT-CMFL60101-IMX335 V1.0 camera module uses the Sony IMX335 high-quality CMOS image sensor, which has a diagonal of 6.52mm (1/2.8 type) CMOS image sensor, a pixel of 2.0um, a color square pixel display, and an effective pixel of 5.14 megapixels. When used with the master board, it can support shooting 5MP pixel high-definition photos and up to 2.7K@30FPS video. The board frame size is 32x32mm, and the size from the top of the module lens to the PCB board is 32x32x23.5mm.



This camera module is not sold separately. The camera module is solely compatible our company’s Ai Master board as they must be sold in bundle, optionally with WiFi expansion board or Network Ethernet board.





 Specifications
 Model No. KLT-CMFL60101-IMX335 V1.0
 Image Sensor IMX335
 Image Sensor Type CMOS
 Effective Pixels 5.14 Megapixels
 Sensor Size 1/2.8"
 Pixel Size 2.0 um x 2.0 um
 Video Frame Rate 4K@30FPS/60FPS (Differential)
2.7K@30FPS
1080P@30FPS/60FPS
720P@60FPS/120FPS
 Photo Resolution
 (with Master Board)
20MP (5200x3900) (Differential)
13MP (4160x3120) (Differential)
12MP (4000x3000) (Differential)
10MP (3648x2736) (Differential)
8MP (3264x2448) (Differential)
5MP (2592x1944) Default
3MP (2048x1536)
2MP (1920x1080)
 Operating Temperature -10°C to +60°C
 Storage Temperature -20°C to +80°C
 Humidity 20% to 80%
 PCB Dimensions 32 x 32 mm
 Module Size 32 x 32 x 23.5 mm
 PCB Screw Hole Spacing 28 x 28 mm
 PCB Screw Hole Diameter 2 mm
