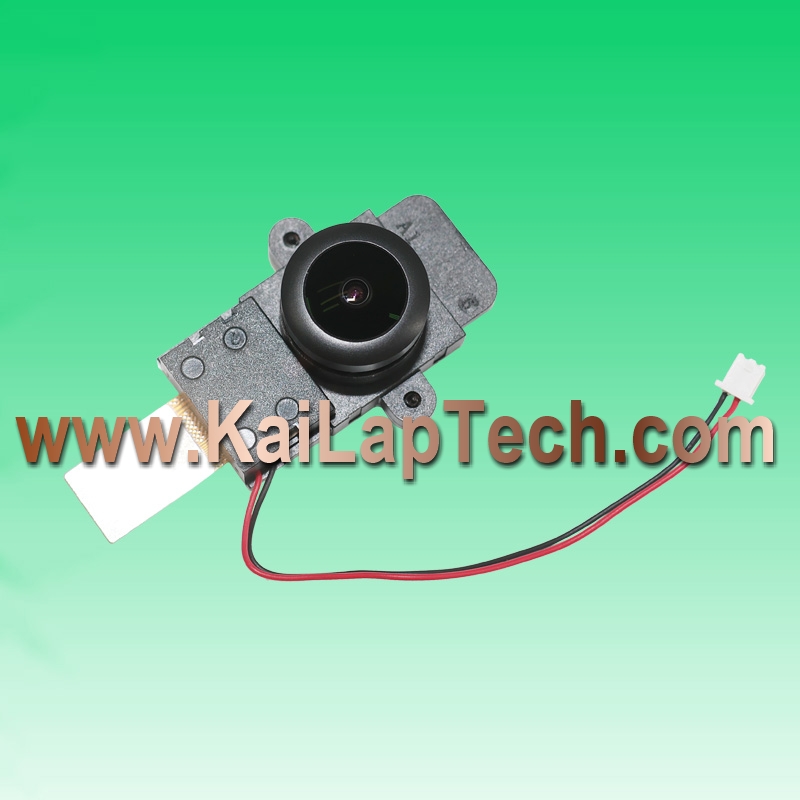

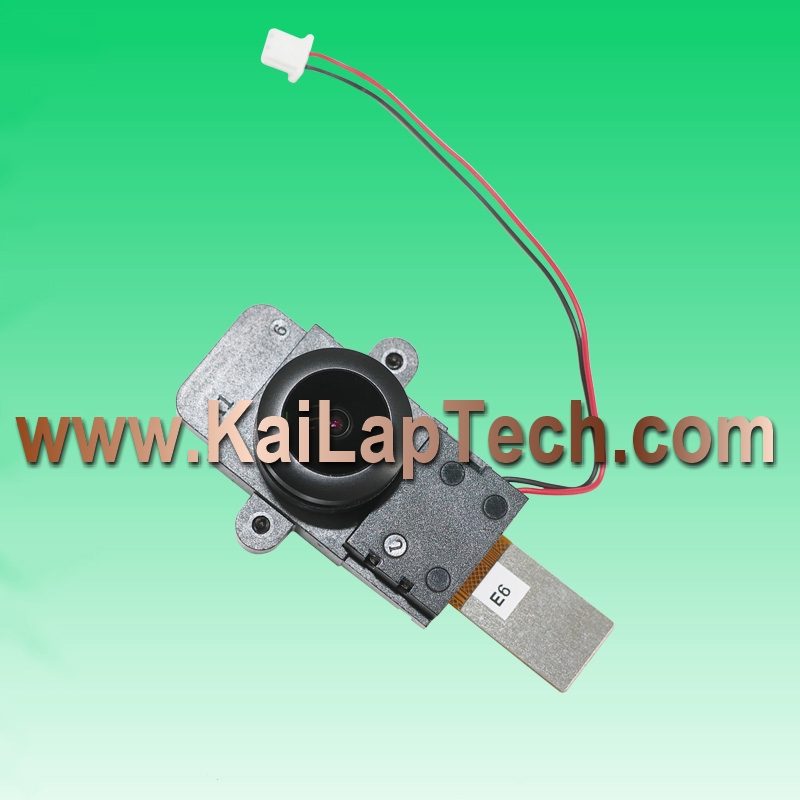

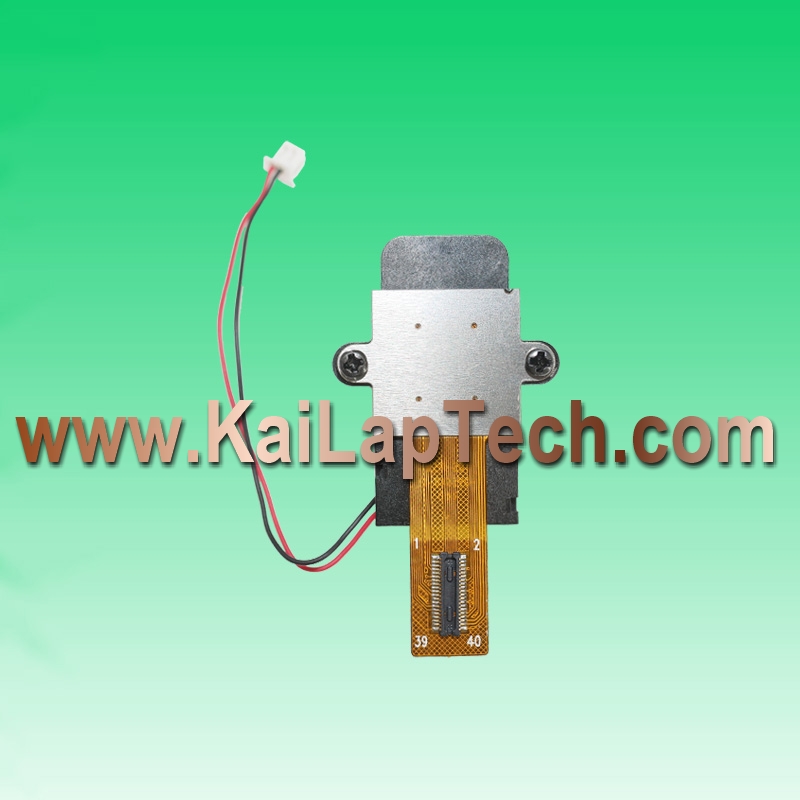

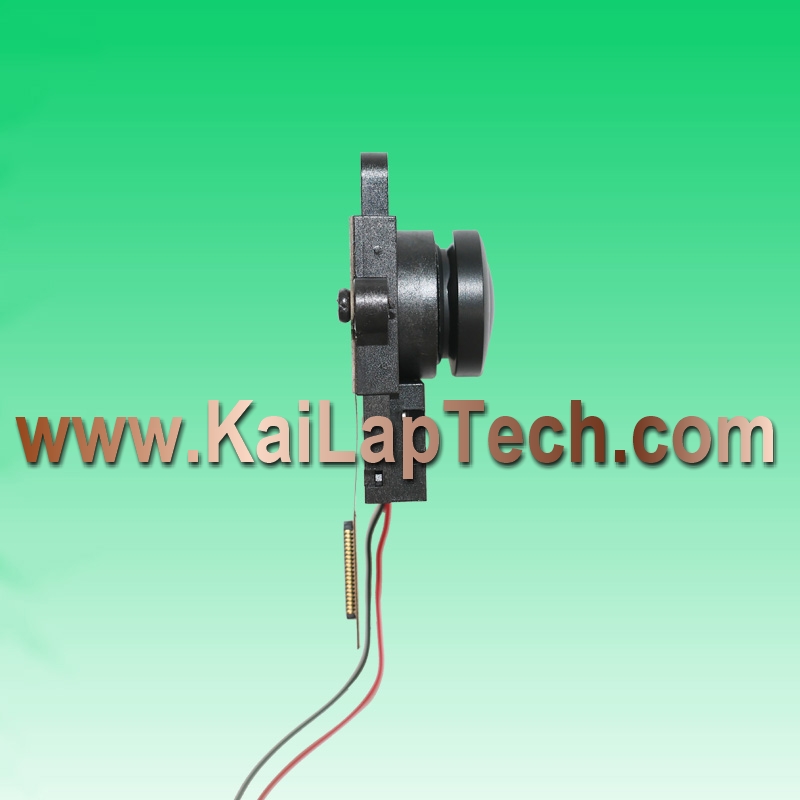

5MP OmniVision OV5640-1B IR Switch MIPI and DVP Parallel Interface M12 Fixed Focus Camera Module
|
| Model No. KLT-IRSW-OV5640-1B V4.0 |
| Camera Module No. |
KLT-IRSW-OV5640-1B V4.0 |
| Resolution |
5MP |
| Image Sensor |
OV5640-1B |
| Sensor Type |
1/4" |
| Pixel Size |
1.4 um x 1.4 um |
| EFL |
2.13 mm |
| F.NO |
2.50 |
| Pixel |
2592 x 1944 |
| View Angle |
137.0°(DFOV) 111.0°(HFOV) 66.0°(VFOV) |
| Lens Dimensions |
16.20 x 16.10 x 16.47 mm |
| Module Size |
49.35 x 24.20 mm |
| Module Type |
Fixed Focus |
| IR Switch Input Voltage |
3.3V - 5.5V |
| Lens Filter IR Frequency |
645nm +/- 15nm |
| Lens Filter AR Frequency |
700nm - 1,000nm |
| Operation (IR Day Time) |
Red Line: Negative Black Line: Positive |
| Operation (AR Night Time) |
Red Line: Positive Black Line: Negative |
| IR Switch Connector |
962-10231-030005 (2 Pin) |
| Interface |
MIPI and DVP Parallel |
| Operating Temperature |
-30°C to +70°C |
| Mating Connector |
DF30FC-40DS-0.4V |
|
|
